Professional CCTV Drain Surveys in London

Discover exactly what is happening underground with professional CCTV drain surveys by Pro Drain. If your drainage system suffers from recurring blockages, persistent foul smells, or mystery structural movement, a high-definition camera inspection will uncover the exact root cause. Identifying the underlying issue allows for a permanent, engineered fix that eliminates the inconvenience, disruption, and ongoing cost of repeatedly calling out emergency drainage clearance services for temporary solutions.

📹 Why Choose a Pro-Drain CCTV Inspection?

Our certified drain surveyors use state-of-the-art camera equipment to view live, high-resolution footage from inside your pipework. A CCTV inspection reveals hidden drainage faults that compromise your structural asset integrity, including:

Tree root ingress splitting the pipe joints and invading lines.
Hardened scale build-up restricting baseline water flow.
Structural cracks, and fractures that weaken structural integrity.
Open Joints & Couplings allowing wastewater leakage.
Heavy fat, oil, and grease deposits narrowing the pipeline.
Displaced pipe joints and structural drops creating obstructions.

Left unaddressed, these common drainage faults cause severe blockages or, in worst-case scenarios, structural damp, property subsidence and complete collapse.

👀 See how clear our drain survey recordings are

Watch the example videos below to see exactly what our certified surveyors and customers see live on screen. Our high-definition cameras provide clear visual evidence, making them a highly valuable tool in investigative drain surveys to accurately diagnose faults before any remedial work begins.

🔍 Beyond the Blockage: Signs of Under-Surface Faults

A drainage problem is obvious when it presents as an overflowing manhole chamber or a blocked toilet. However, there are many subtle signs that something is wrong deep within the underground pipe network. If you notice sink and toilet traps emptying due to siphoning, unexpected insect infestations, or structural abnormalities around your property such as sunken or cracked surfaces, your drainage infrastructure should be thoroughly evaluated by a CCTV drain survey company.

📋 Specialist Drainage CCTV Surveys We Provide

We regularly provide high-tech camera inspections and drainage system assessments for a wide array of clients across London, including residential property owners, business operations, construction companies, civil engineers, building surveyors, architects, insurance providers, local water companies, and property developers.

🏡 London Homebuyers Drainage Check

Purchasing a property means inheriting its underground infrastructure. Before you close the deal on your dream property or investment, a homebuyer pre-purchase check is vital to avoid any future hassle and possible financial loss. Booking a comprehensive home purchase assessment of the drainage system alerts you to expensive structural faults or serviceability issues before exchanging contracts, saving you from post-purchase financial stress. Furthermore, a professional drainage report is frequently a strict stipulation mandated by mortgage lenders and home insurance providers before approving funds or structural policies.

We deliver industry-standard assessments for property transactions. Learn more about our specialised homebuyers drain survey London options, which include full structural diagnostics and complete ownership maps.

🏗️ Pre & Post Construction Compliance Surveys

Are you planning a property extension, garden landscaping, renovation, or a new structural build?

Pre-construction surveys assist with detailed planning for new drainage connections, evaluate whether the existing system has the capacity for increased wastewater output, and ensure there are no underlying flaws before building work starts. This protects your project from expensive structural delays.
Post-construction surveys ensure that building contractors have not accidentally damaged existing infrastructure, confirm new connections are fully compliant, and check that pipelines are completely free of building rubble, concrete wash, or other types of project debris that if left behind will cause blockages.

Finish your project with absolute peace of mind that the drainage system is in the same condition as before and no obstructions within the system will cause future issues this is both beneficial to the property owner and the main contractor or company as it provides protection to both for any future liability if drain related problems were to arise.

If your building project involves building near or over a public sewer, your local council building inspector or water utility provider will require formal verification. Visit our dedicated Thames Water build over drain surveys page to read about compliance requirements and exactly what we provide within this type of survey report.

🐀 Sewer Rat Infestation Surveys & Pest Prevention

Sewer rat problems are heavily on the increase across London areas and can rarely be permanently solved by traditional surface baiting and pest control measures alone. Our drain camera investigations trace and identify the exact route rats are taking to enter your properties drainage system from the public sewer and also identify any structural faults allowing rats to tunnel out of privately owned sections of drainage beneath or around the property gaining access to floor voids or internal cavity spaces. With extensive drainage system layout knowledge and lots of prior experience, many of these infestations can be resolved with simple and often inexpensive, targeted fixes. To read more about how we permanently prevent rodent entry, visit our specialist rats in a drain London page.

🧩 Solutions for Complex Drain Related Property Issues

🏚️ Expert Diagnosis for Property Damp & Subsidence

Signs of damp issues affecting a property often appear as discoloured or flaking paint on external or internal walls, accompanied by a musty odour. While poor ventilation, failed damp-proof courses, or plumbing leaks are common culprits, broken and cracked drainage systems are a highly frequent cause of damp problems as wastewater continuously seeps into the surrounding ground.

💧 How does a leaking drain contribute to property subsidence in London?

When a damaged drain allows wastewater to escape into the ground, it saturates the area beneath structural foundations causing soil erosion. This process can wash away the surrounding soil, leaving large subterranean voids that lead to ground movement. As a result, foundations can become unstable, sink, or shift, causing walls to crack and surfaces to drop. Additionally, clay shrinkage during prolonged dry periods and large tree root growth near property foundations can also contribute to subsidence. Even as a process of elimination for a structural surveyor or property owner, having the drainage system checked with a CCTV pipe inspection drain survey is a highly worthwhile investment to confirm or rule out a link to the drainage system.

🚧 Common London Drainage Faults

Below are images from some of the many London drain surveys we have conducted and the type of drain faults that are prevalent especially in Victorian or Georgian era constructed properties.

A broken & Root Ingress.

A Circumferential Fracture.

A Deformed Section of Underground Drain.

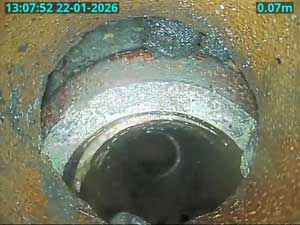

A displaced joint dropped section of drain.

A hole at the top of this drain.

A redundant disused drain not correctly capped off.

Broken drain.

Buried manhole chamber.

Circumferential crack.

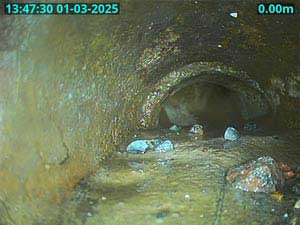

Hardened scale build which causes recurring blocked drains.

Hole in Drain.

$Multiple fractures & broken drain.$

Multiple fractures & broken drain.

Open drain Joint.

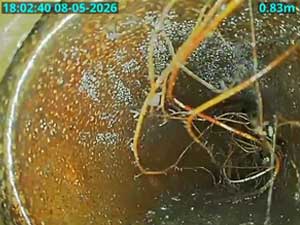

Tree root Ingress.

Water Level Ponding or Dipping Lack of Gradient.

👃 Finding the Cause & Resolving Internal Odours

Drain smell issues: An intermittent whiff of sewage within a property can be caused by a lack of an air admittance valve on an internal stack pipe, open-ended stack pipes hidden behind stud walls, or appliances (showers, kitchen sinks, washing machines) installed without a trap upon the waste pipe. Another possibility is that there is an unidentified disused section of drainage that has not been correctly capped off, this usually occurs during property renovations with drainage system alterations and can be completely overlooked resulting in an open end allowing sewer gases to vent.

🌍 Environmental Drain Surveys & Misconnected Drain Pipes

Environmental Misconnections: Our professional investigations quickly identify drainage system misconnections—where foul drains serving toilets or kitchens have been mistakenly routed into surface water drainage systems, contaminating local water authority clean water sewers. The term misconnection can also apply to rain and surface water drains that have been connected to a foul water drainage system.
P>Not only do we diagnose these misconnections, we are also vastly experienced drain installers. We provide competitive quotations to permanently reroute and fix your system. Read more about correcting misconnected waste pipes by visiting our drain installation London page.

🗺️ Underground Drain Tracing and Mapping London

If you need to map an entire drainage network or locate a hidden asset before digging foundations or planting trees, our sonar tracing technology plots underground infrastructure with precision. Remove the risk of an accidental underground drain strike and the associated risk of damage to a drainage system.

🎯 Precision Sonar for Buried Manhole Locating

Using high-tech CCTV pipe inspection equipment and precision sonar tracing, we easily plot the exact route, depth, and discharge points of a single drain run or an entire drainage system, providing you with a clear schematic diagram.

A covered or buried manhole chamber might not cause an issue right now, but in the event of an emergency blockage, that lack of access can prolong the issue and significantly raise clearance costs. If your property lacks visible access points, our engineers can safely remove a toilet or install an access cap onto an internal soil stack pipe to run our camera and locate the hidden manhole chamber with precision. Once located, we undertake all associated groundworks and install a modern, surface-level inspection cover to restore permanent access. You find out more about our upgraded manhole cover installations by visiting our drain cover replacement London page.

📊 What Our In-Depth Pipeline Analysis Reveals

Every drain survey or investigation adheres strictly to best-practice industry standards, making our approved reporting format easily interpretable for homeowners, drainage professionals, architects, building surveyors, insurance providers, water authorities and building control inspectors.
When your survey is complete, you will receive an access link to a secure, web-based report control panel. This central hub allows you to access full recordings with a playback feature and all the information in one place or you can download your full report instantly without needing to chase paperwork or requesting copies of recordings. Your complete survey package includes:

WRc-Approved Structural Report: Detailed data outlining pipe diameters, materials, accurate depths, and exact meterage measurements for bends, junctions, and faults.
System Layout Mapping: Clear insights into structural asset conditions, pipe duty, and legal system ownership boundaries.
HD Digital Evidence: High-definition video recordings and crisp digital images capturing every identified fault.
Transparent Diagnostics: Clear defect analysis alongside a competitive, fixed-price quotation for any recommended structural repairs or maintenance.

🏅Industry approved & compliant drain survey reports

Click on the images below for a closer look at our example CCTV drain reports.

📋 Understanding Your Drain Survey Report

As a professional and certified drain survey company, we provide high-end, WRc-approved reports. We use industry-standard fault coding practices in accordance with EN 13508-2 and the WRc’s Manual of Sewer Condition Classification (MSCC) standards.

Faults are documented within your report using industry code abbreviations and long-form descriptions (for example, CCJ - Crack Circumferential at Joint, or OJM - Open Joint Medium). Alongside the fault or service code, you will see a severity score ranging from 1 (low severity) to 5 (critical). Below is a breakdown of our fault scoring process:

Fault Scoring 1-2 (Low Severity / Risk): Used for general service codes—such as REM (General Remarks), LRF (Line of Drain Deviates Right), or ST & FH (Start and Finish of the individual section survey). It also applies to minor faults like cracks that do not pose an immediate threat to the system's serviceability but should be monitored.
Fault Scoring 3 (Medium Severity / Risk): This score recommends that faults be addressed in the short term. It applies to defects such as JDM (Joint Displaced Medium), RJ (Roots at Joint), or DEE (Attached Deposits Encrustation), all of which pose a medium risk to the structural condition and efficiency of your drainage system.
Fault Scoring 4-5 (Critical Risk): This score demands immediate action and urgent remedial work. It is reserved for severe structural defects like B (Broken Pipe), FM (Fractures Multiple), H (Hole in Drain), or XP (Collapsed Drain) which pose an immediate threat to the system.

🧐 A Pro Drain London Professional Second Opinion

If you have already had a survey completed by another company and want a second opinion, simply email the report to us. Our experienced team will be more than happy to assist you with our unbiased and independent opinion on your existing data completely for free and furthermore if remedial action is necessary we will also provide you with an alternative no obligations fixed price quotation

🛠️ CCTV Drain Survey Full-Service Structural Repairs

Should your survey reveal structural issues, Pro-Drain is a fully licensed London drain repair or damaged drain replacement company so we can look after you throughout the process of identifying and resolving a drainage system problem. Why not check out the full range of our drain repair London expertise.

❓ CCTV Drain Survey FAQs

🚿 Do drains need to be cleaned before a camera inspection?

Yes. Professional industry standards dictate that pipes should be high-pressure water jetted where possible prior to a survey. This clears away encrustations, grease, slime, spiderwebs, and debris that could otherwise obscure the view of structural cracks or hide defects from the camera. However, for specific problem investigations—such as recurring or active blockages—we perform an initial inspection from a clear access point before cleaning to identify the exact composition, location, and nature of the build-up (such as lost drain rods, wet wipes, concrete wash, or cooking oils). This allows us to provide undisputable evidence when investigating the cause of various drainage issues.

💰 How much does a drain survey in London cost?

Pro-Drain operates on a transparent, flat-rate pricing structure. We never alter our rates based on your postcode or the perceived affluence of your neighborhood. Our CCTV pipe inspections start from £150.00 plus VAT. Our London drain survey fixed price includes localised pre-cleaning, the camera investigation, and your complete digital report pack (including video footage and your WRc-approved documentation). Contact us today for a free, no-obligation fixed quotation.

🚜 Do all leaking or damaged drains require disruptive excavation?

No. Most leaking open joints, cracks, and fractures can be permanently restored and sealed by installing watertight cured-in-place drain linings or localized patch linings without excavating. Take a look at the comprehensive structural benefits of our drain relining London services.

Severely damaged infrastructure—such as broken gully pots, Buchan traps, interceptor traps, or dropped sections of underground drains with a cross-sectional diameter loss of 15% or more—are generally not suitable candidates for relining unless logistically it is the only viable option. In most severe damage cases, precision excavation and structural replacement by our expert drain repair team is the best course of action.

👷 What should I expect from a professional drain inspection company?

At the very least, a certified company should provide a fully qualified engineer equipped with a self-levelling color camera system, precision sonar tracing tools, and specialised digital reporting software. You should receive full access to all video files, a mapped drainage diagram, a detailed structural health breakdown, and a transparent explanation of any necessary remedial work.

📞 Get an Expert Drainage Survey Service Today

Pro-Drain guarantees fast, friendly, transparent, and cost-effective drainage survey solutions across London regions. Speak directly to our experienced team to secure your booking or gain expert advice:

Call us today: 0208 819 1561 or 0800 118 2932 (Speak directly to Drain Surveyors)
Services covered: All manner of problem drain investigations including buried manhole location, Construction project drain surveying, property damp/subsidence checks, and building regulations compliance surveys.
