No-Dig Drain Lining London: Trenchless Structural Repairs

Structural pipe damage, leaking joints, and drainage system renovation no longer require destructive, expensive excavations. At Pro Drain, we deliver an advanced, trenchless drain lining service in London to restore your underground drains without disturbing your property.

By using Cured-In-Place Pipe (CIPP) technology, we install a brand-new, seamless pipe directly inside your existing damaged drain. This process completely bypasses the logistical nightmare and often costly process of breaking through and then reinstating patios, driveways, lawns, or internal flooring.

📞 Need expert advice or a free, no-obligation quotation?

Speak directly with our certified London drain relining engineers today on 0800 118 2932 or 0208 819 1561.

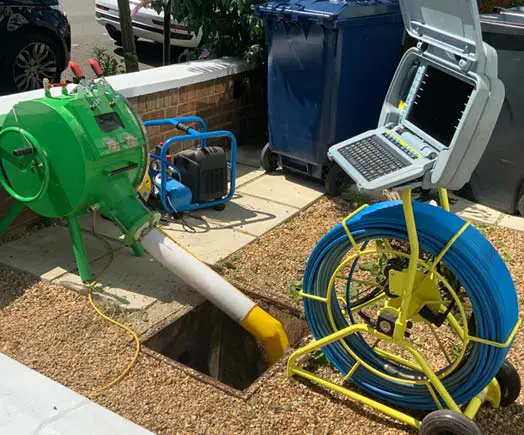

🛠️ The Technology: What is Drain Lining?

A drain lining sleeve consists of a PVC-coated, fibreglass-reinforced felt tube ranging from 3mm to 6mm in thickness. This structural sleeve is used to renovate underground drains in situ, covering damaged drain pipe diameters from 75mm up to 375mm.

The Wet Out Process: The internal felt material of the sleeve is impregnated with a precise, chemically controlled mixture of polyester resin and an activating catalyst.
Insertion: The saturated lining sleeve is mechanically pulled or manually pushed into place within the damaged section of the host drain.
Inflation & Shaping: An inflation hose is inserted into the liner and filled with controlled, pressurised air. It rolls through the lining, shaping it tightly against the host pipe’s inner walls to seal all joints, cracks, and fractures.
Ambient Curing: The pressure is maintained while the chemical mixture undergoes polymerisation at ambient temperature. Once hardened, the end result is a highly durable, air- and water-tight new pipe installed inside the old one with a smooth inner finish that improves flow characteristics.

⚖️ Full Relining vs. Localised Patch Lining

We dynamically tailor our repair methods based on the frequency of faults and specific types of damage within your sewer or storm water pipe network.

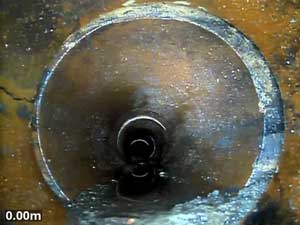

1. Localised Patch Lining Repairs

When a structural defect is isolated to one or two specific points along an otherwise healthy drain run, full relining is unnecessary. Instead, we install precisely placed pipeline patching using high-quality multi-axle glass cloth patches wetted with resin and isocyanate.

Available Lengths: 300mm, 600mm, and 1000mm kits to cover single or closely grouped faults.
Diameter Range: Suitable for 100mm, 150mm, and 225mm drains.
Pipe Materials: Adheres perfectly to clayware, cast iron, pitch fibre, and PVC.
Bends: Our engineers use specialised, flexible patches and inflation equipment to reline damaged 90-degree bends without wrinkling.

2. Full Structural Drain Lining

If an underground drain run exhibits more than two or three structural faults, installing a continuous, resin-impregnated CIPP liner within the entire length of the pipe line becomes the most secure and cost-effective approach for the customer. A full continuous length of drain lining also restores the structural integrity of the commonly identified displaced joint fault and protects against the further misalignment of pipe sections.

📋 Specialist Drain Lining Applications

🛡️ Pitch Fibre Pipe Protection Relining & Restoration

Pitch fibre pipes are highly susceptible to chemical breakdown, blistering, and structural warping deformities that affect the efficiency of these aging drainage systems. Installing a structural drain lining inside a pitch fibre drain reinforces its weakened composition, coats over blistered internal walls with a smooth finish, and extends its lifespan to match that of the newly installed lining itself.

⚙️ Cast Iron Drain Renovation

Old cast iron systems suffering from inner-surface oxidation can be fully restored. After using mechanical descaling to clear the pipe, we install a CIPP lining. The sleeve cures to form an airtight seal that completely halts future corrosion and scale build up. This is a key drainage asset protection process that prolongs the lifespan of ageing cast iron drains and stack pipes.

🛑 Structural Limitations: When Lining Cannot Be Used

Drain lining is a highly versatile repair option, but it cannot fix every structural failure. We will always recommend an alternative structural repair or excavation replacement if the host drain meets any of the following criteria:

Severe Deformation: The host drain has a partial or complete collapse resulting in a loss of diameter greater than 15%. Because drain liners and repair patches mold directly to the host pipe's profile, this restrictive deformity would remain and continue to cause serviceability issues posing the risk of blockages and sedimentation within the drain.
Missing Structural Sections: Complete sections of the pipe wall have broken away or washed into the surrounding soil. The lack of an outer shell for a drain lining lining to adhere to compromises the products overall strength and durability.

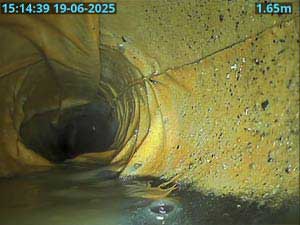

Multiple Sharp Bends: Continuous runs with consecutive sharp bends can cause obstruction to the push up or pulling in methods of installation and often result in failed attempts and product wastage, standard liners also cure in a heavily wrinkled state, creating problematic snagging points for tissue and solids that lead to recurring blockages.

Call: 0208 819 1561 - NO CALL-OUT CHARGES OR HIDDEN FEES

What happens if my drain cannot be relined or patch repaired?

In this instance, whether a cross-sectional loss is too great, there is a collapse within the drain line, or there are significant sections of pipe missing, we advise upon and undertake the more conventional excavation and replacement method as it then becomes the most efficient method of damaged drain restoration without compromising serviceability. If you think drain lining is not the best option for the structural issues you have within your property's drainage system, you can find out more about our excavation and replacement service by visiting our London drain repair page.

💰 Clear, Fixed Pricing for London Drain Lining Services

Variations in drain Lining repair costs are driven primarily by the total length of the liner, the pipe diameter, and the level of preparatory cleaning required to remove obstructions and restore the full diameter of the drain prior to installation.

Localised Patch Lining Repair: Starts from £350.00 for a single, isolated fault.
Full CIPP Drain Lining: Typically ranges from £500.00 to £3,000.00 depending on the diameter, length and pre cleaning requirements.

Note: Additional operational costs may apply if drain milling tree root extraction is required prior to installation, or if deep manhole access demands specialist confined-space entry equipment to ensure the installation is undertaken in a safe manner and within full health and safety guidelines.

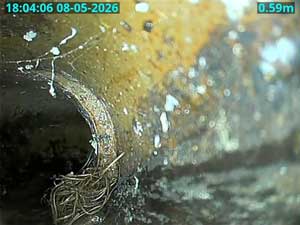

🌳 Permanent Tree Root Ingress Removal & Prevention

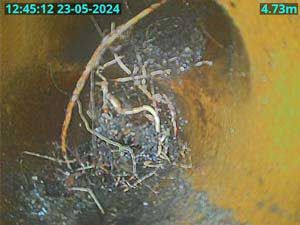

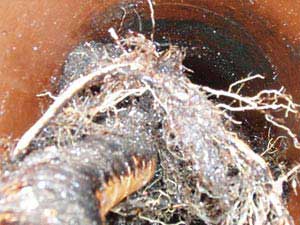

Tree, shrub, and hedge roots are naturally drawn to the heat, moisture, and rich nutrients moving through your drainage system. They exploit microscopic hairline cracks, fractures or unsealed clay pipe joints, expanding rapidly from fibrous to mass root clumps until they cause stubborn blockages and obstructions restricting the working diameter of an underground drain.

It's not just root intrusion that poses a risk to an underground drain, external root growth around or directly beneath a pipe can lift and misalign sections, or completely fracture the line and in some extreme cases cause a complete collapse of the pipe. Pro Drain resolves drainage root ingress permanently using a reliable, two-stage trenchless process:

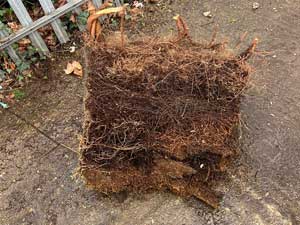

CCTV-Monitored Root Cutting & Removal: We deploy high-pressure water jetting and specialised electromechanical milling machines (such as Picote systems) to cut the roots away from the point of entry before flushing loose remains out for retrieval. This precision method of intruding roots removal ensures a quick and cost effective solution.

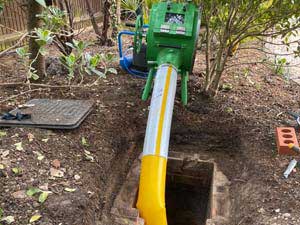

Structural Liners as a Permanent Barrier: Simply cutting away and clearing tree roots from within a drain line is a temporary fix—they will grow back. To resolve drainage system problems caused by root infiltration permanently, we install a seamless CIPP liner or structural patch lining to cover the cleared section and point of entry. Because our liners have zero joints, they provide an airtight, watertight seal that removes the root network's nutrient source and completely blocks re-entry.

🌟 Approved Quality Drain Linings & Industry Standards

Certified Compliance: All drain lining installations by Pro Drain conform strictly with European Standard BSEN13566-F:2002 for Cured-In-Place Pipes (CIPP) drainage system repair and renovation.
Premium Materials: We exclusively install Water Research Council (WRc) tested Renoline and RSM systems.
Guaranteed Durability: Every lining installation comes with a 15-year guarantee covering our workmanship and the lining sleeve used, which has an engineered product life span exceeding 50 years.
Environmental Safety: The chemical components used are fully inert and completely harmless to the surrounding environment once cured. Our certified engineers work within a safe system of work which sets out strict risk control measures for the safety of our customers and themselves adhering to chemical handling regulations and responsible spent container disposal.

❓ FAQ – Drain Lining London

What is CIPP drain relining?

Cured-In-Place Pipe (CIPP) relining is a trenchless repair method. A flexible, resin-soaked liner is inserted into a damaged pipe through existing access points, inflated using controlled air pressure, and left to harden into a seamless, watertight new pipe inside the old one.

Do you need to dig up my property to install a liner?

No. Drain lining is a complete no-dig solution. We access your drainage system entirely through existing infrastructure like manholes, inspection chambers or rodding access points, protecting your lawns, driveways, and interior floors from excavation damage and disruption not to mention the associated reinstatement costs.

How long does the lining installation process take?

Localised Patch Lining: Takes a maximum of 2 hours per application.
Full Drain Relining: Typically takes between 4 to 5 hours to complete.

How soon can I use my drains after the lining is installed?

Your system is ready for immediate use the moment the curing process is complete and the inflation packer or hose is removed from within the installed lining or patch repair.

Does drain lining drastically reduce the size of the pipe?

You can expect a minimal cross-sectional diameter loss of 5% to 6%. However, this loss is far outweighed by the benefits of the ultra-smooth internal finish of the new resin liner which significantly increases water flow velocity and eliminates structural friction, reducing overall blockage risks compared to the damaged host pipe.

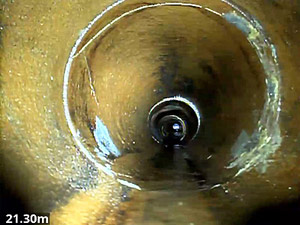

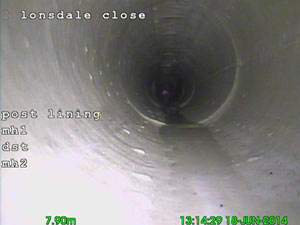

Do you provide CCTV drain surveys before and after the work?

Yes. We perform an initial CCTV drainage survey to accurately diagnose structural defects and verify if lining is appropriate. Upon completion, we provide you with a post-installation CCTV recording for complete transparency. We are very proud of our expertise in lining and are always happy to showcase the quality of our drain lining or patch repair installations with a digital recording proving the competency and seamless finish of our workmanship. Check out our CCTV drain surveys page to explore our pipe inspection services and the high definition recordings we provide.

📞 Get Fast, Professional Drain Lining Solutions Today

Do not let cracked joints, pitch fibre deformities, or invasive root networks compromise the structural integrity of your property's infrastructure. Whether you need an isolated patch repair on a 90-degree bend or a full-length CIPP structural liner to restore a drain with continuous faults, you can count on Pro Drain for fast, certified, and fully guaranteed relining services.

Speak directly with our knowledgeable team of local drain lining and patching engineers today to secure a fixed-price quotation or request expert guidance on your drain lining requirements. Call Pro Drain on Freephone 0800 118 2932, telephone 0208 819 1561 or return to our London drainage services homepage to explore our comprehensive range of 24/7 commercial and residential emergency drain service options.
